Customer: Fonkwang Development  Limited.

Owner: Melco Crown (COD) Developments Ltd

Location:  Macau, China

Steel Material Standard: EN 10025 ,EN 10210 & EN 10225

Fabrication Code: BS/EN 1090-1 and BS/EN 1090-2 Execution class – EXC3 & EXC4, BS/EN 1011-1, BS/EN 287-1

Total Tonnage:  Approx. 27,000MT

Whole Project Duration:  Dec.2014~Mar.2016

Fireproofing Tonnage:  12,000 MT

Fireproofing Area:  45,000 m2

Fireproofing Material: Epoxy Intumescent Paint

Fireproofing Standard: Fire Rating up to 3 hours

Fireproofing Code: BS 476 Part 7, BS 476 Part 20~22, BS 8202-2

Fireproofing Duration:  Jan.2015~Jan.2016

USSL Project No.: 9029

Fireproofing System:

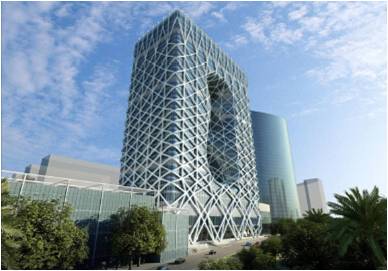

The  building is a new Hotel and Casino which will sits within the existing City of Dreams entertainment complex located in Macau, China.

All exoskeleton steelwork shall be to be provided with a Fire Resistance Period (F.R.P.). for fire rating up to 3 hours. The fire proofing work is ongoing, and it is forecasted to end up by the beginning of 2016. The quantity of fireproofing area is 45,000 m2.

Fireproofing System:

- All steel shall be blast cleaning in accordance with SSPC-SP10.

- Primer: Interzinc 52; 75um.

- Tie coat: Intergard 269; 40um.

- Fireproofing Paint: Interchar 212; 5~13mm.
